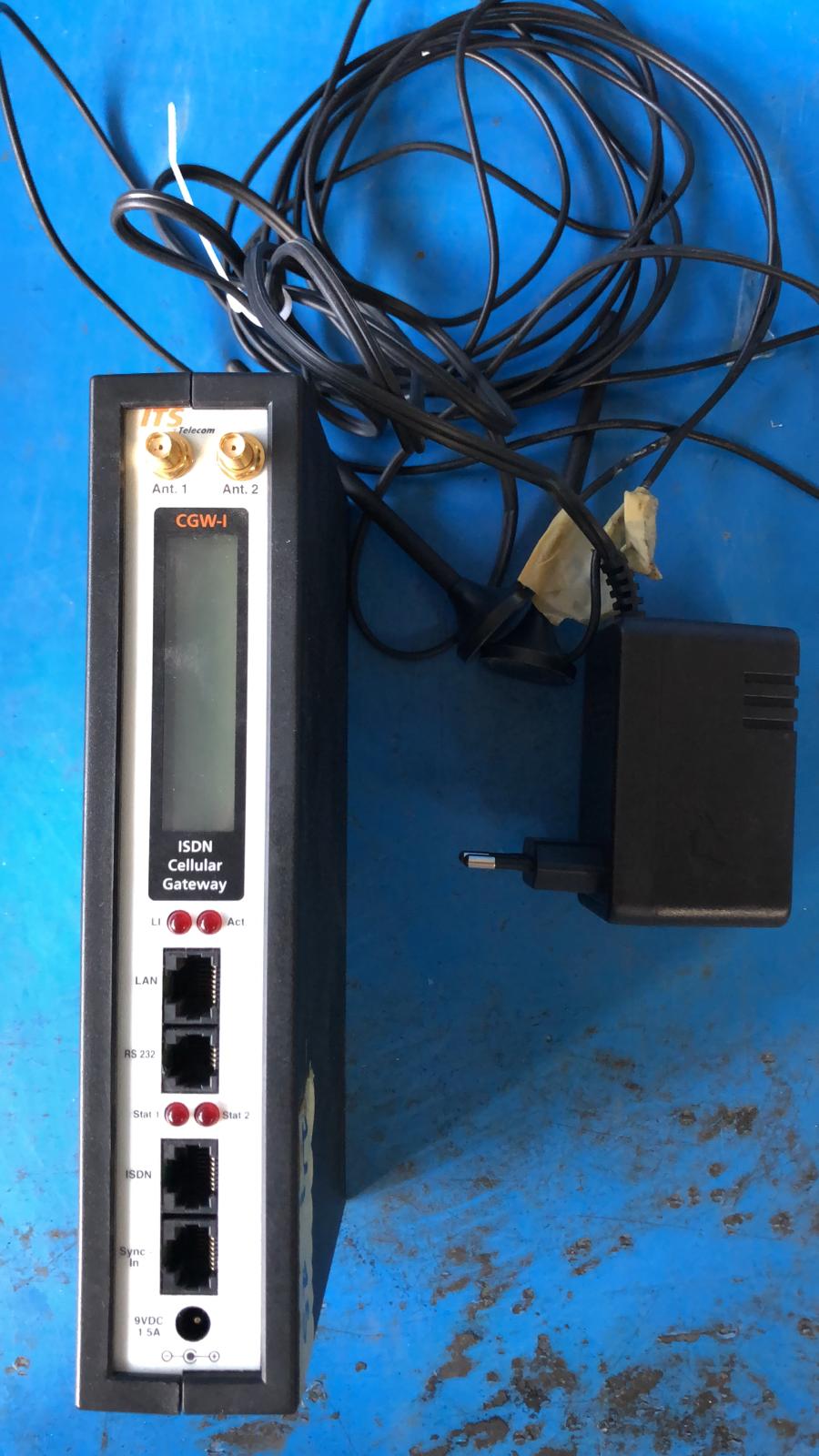

ITS Telecom Analog Cellular Gateway CGW-I

Cellular Gateway marca ITS Telecom modello CGW-I, 900/1800 MHz completo di alimentatore.

ISDN-BRI Cellular Gateway that lets you call cellular numbers from your ISDN telephone system, benefiting from low business tariffs, bypassing your landline carrier and eliminating interconnection fees.
o Intelligent Routing – Return up to 1,500 mobile calls directly to the calling Direct Dial-In (DDI) o MSN Routing o Incoming & Outgoing Calls Control
o Call Diversion o Toll Restrictions o Redirect Calls o Call Duration o DISA o Full Device Control o Maintenance Alarms o Statistics o CDR – log for up to 2,500 records o Balance Call Distribution o Prepaid SIM Card Administration
Management & Monitoring
Programming: GUI : Maintenance alarms: E-mail/SMS : Statistics for each SIM : CDR (no. of records): 2,500 : Prepaid SIM card administration
Control & Maintenance
CLIP/CLIR : SIM protection from unauthorized removal : Dialing mode support: Overlap / En Block : Gain control : Network lock
System specifications
No. of cellular modules in each board/system: 2
GSM support: 900/1800
CDMA support: 800/1900 MHz UMTS* 2.4GHz No. of SIM cards per card/system: 1/2 SIM card (plug in, small): 3V Protocol support: EuroISDN
Receiver sensitivity: -103dBm Power supply input: 110VAC, 60Hz / 220VAC, 50Hz Power supply output: 9VDC, 1.5Amp
Hardware Specification
Indicator: LCD
Dimensions (H*W*D): 34*321*312 Weight: 0.8 Kg/ 1.76 Lbs Operating temperature: 0oC-45oC / 32oF-113oF Relative humidity: 5-95% Installation: Wall mounting
